WSERD30-B-1/30 C

Product Code: WSERD30-B-1/30 C

Features
  • DC 12V power supply
  • Built-in rechargeable Lithium battery
  • Electronic limit switch
  • Built-in receiver
  • 3rd intermediate limit position
  • Ultra quiet operation
  • Adjustable speed
  • Patented coreless technology
  • No aerials
  • NEO app control
RATED TORQUE (1Nm) 1
OUTPUT SPEED (rpm) 30
ALDC CHARGER 5V-C
NOMINAL VOLTAGE (V) 7.4
RUNNING TIME (Mins)
PROTECTION INDEX (IP) 20

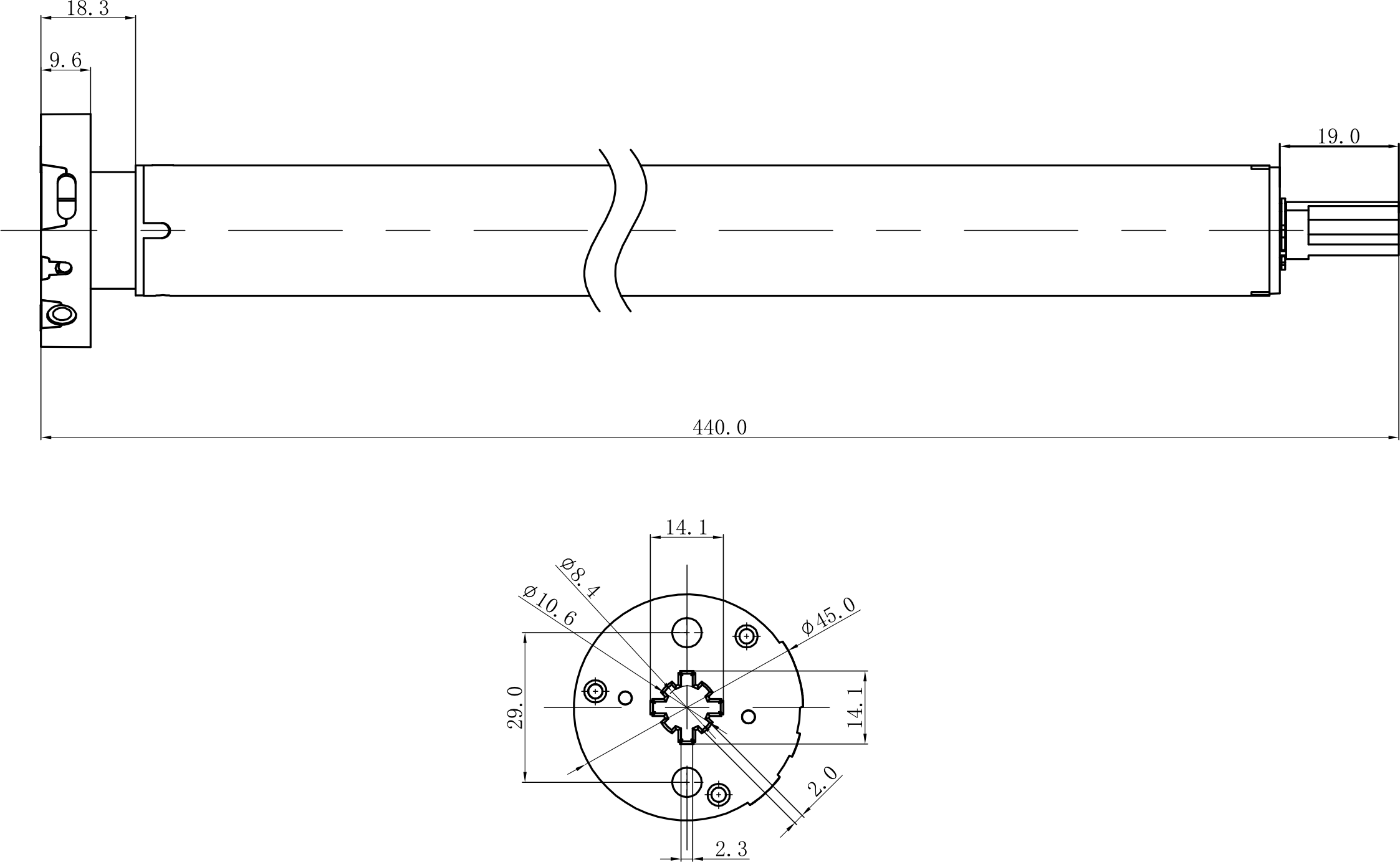

TOTAL LENGTH (mm) 460
MAXIMUM TURNS
NET EIGHT (Kg) 0.48




PLEASE NOTE:

• To keep product in good condition, please charge the motor every 3 months.

• Please do not let children play with the remote or motor.

• Storage temperature: -20°C to 65°C



DESCRIPTION
The WSERD30-B 1/30C (1Nm) motor can lift a blind up to 2m high x 2m wide. This new version of the WSERD30-B motor a USB-C charging port and uses an ALDC 5V-C charger.
SPECIAL CARE
Lithium-based batteries can pose a fire hazard if mishandled.
WARRANTY
N/A
