WSERD50-B 10/14

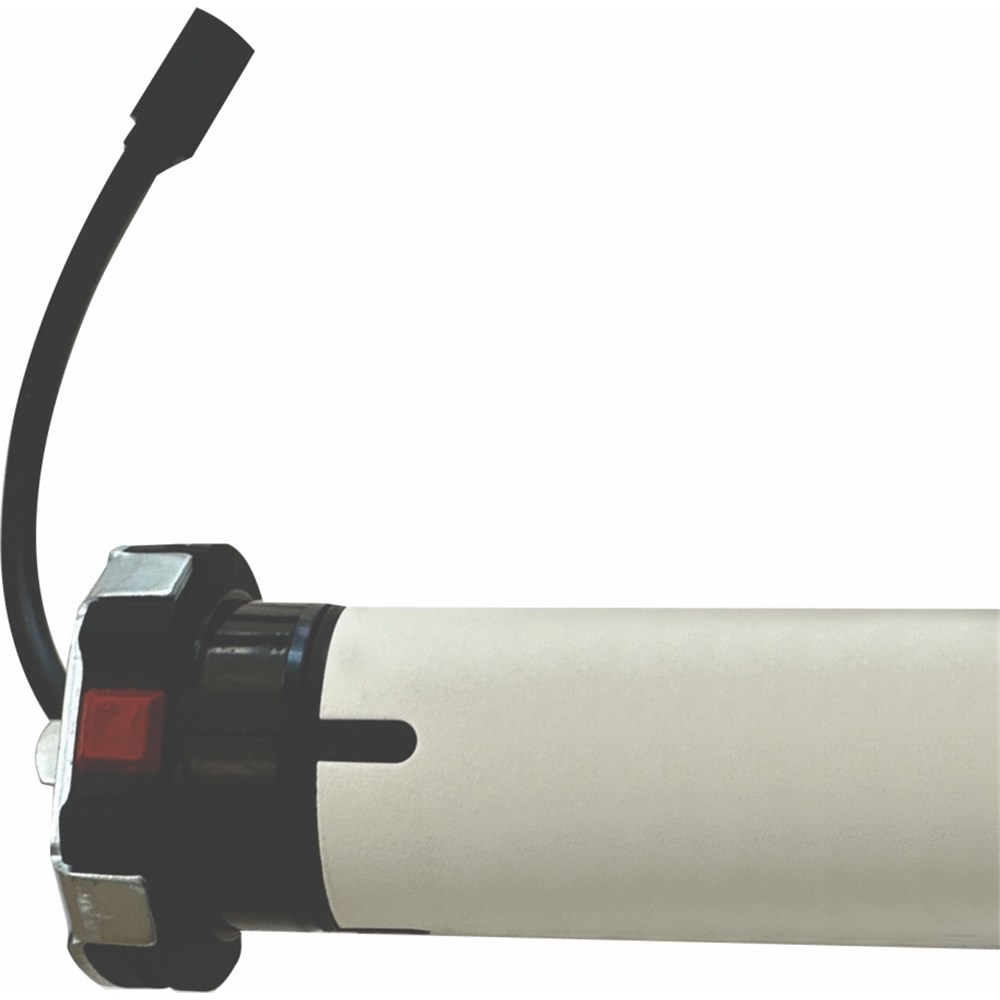

Battery operated motor (WSERD50-B-10/14)

Features
  • Ultra quiet motor
  • No electrician needed
  • 3 adjustable speeds
  • 5V USB-C charger required (ALDC 5V 2amp LED)
  • Charging options: 1.5m side channel charging port, 150mm head box charging port, 5V solar panel (TYB004-U)
TYPE 10/14
Obstacle Detection NO
Rated Torque (Nm) 10
Output Speed (rpm) 10/12/14
Nominal Consumption (W) 36
Nominal Voltage (V) 12
Nominal Current (A) 3
Running Time (mins) 12
Protection Index (IP) 44
Total Length (mm) 800
Maximum Turns (turn) infinity
Net Weight (Kg) 2.1
Included C&D A2409
Included Bracket A3005
DESCRIPTION
The WSERD50-B 10/14 motor features a built-in rechargeable lithium-ion battery, designed for external applications like zip systems and straight drops awnings. A range of charging options, including headbox-mounted charging sockets, side channel charging sockets, or TYB004-U solar panel options are available.
SPECIAL CARE
N/A
WARRANTY
N/A
