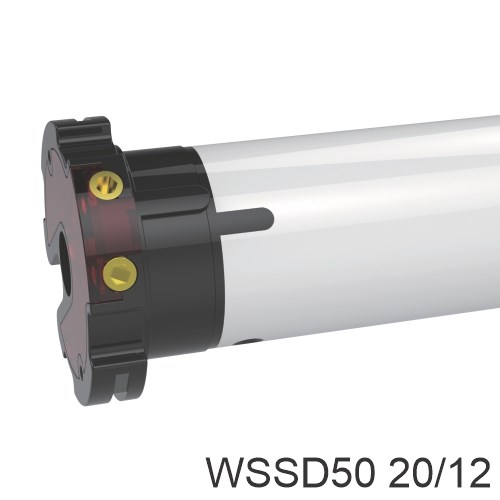

WSSD50 20/12

Product Code: WSSD50 20/12

Features
Mechanical limit switch
DC 2 core motor
45mm diameter motor


RATED TORQUE (Nm) 20
OUTPUT SPEED (rpm) 12
NOMINAL CONSUMPTION (W) 84
NOMINAL VOLTAGE (V) 12
NOMINAL CURRENT (A) 7
RUNNING TIME (Min) 12
PROTECTION INDEX (IP) 44
TOTAL LENGTH (mm) 600
MAXIMUM TURNS 27
NET WEIGHT (kg) 1.4
INCLUDED C&D A2404
INCLUDED MOTOR BRACKET A3415



Documents

DESCRIPTION

Alpha’s DC 20Nm roller shutter motor is designed to lift most domestic roller shutters.

WSSD50 20/12 (2-wire) motor is to be used with the DCB003 & DCB003-R wall switch. (see here)

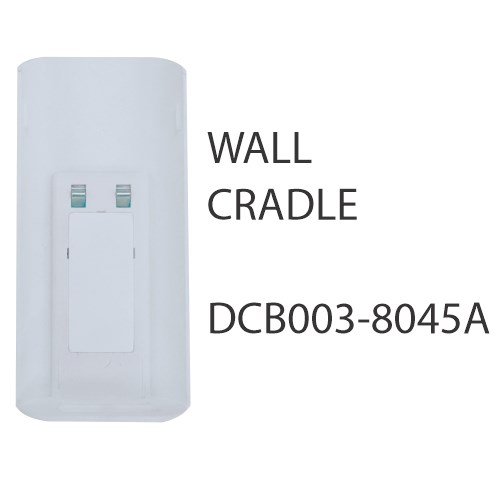

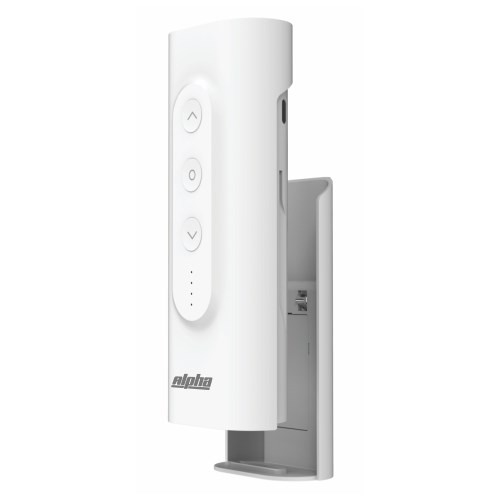

The wall switch incorporates a USB-C rechargeable battery to power the motor. Two wall switch versions are available:

  1. DCB003 for up/stop/down control.
  2. DCB003-R which includes a built-in receiver to allow remote control operation.
(Please Note: DCB003 Wall Switch is sold separately.)
SPECIAL CARE
N/A
WARRANTY
N/A
