WSCMI-DC-2.0 Standard Curtain Motor

Lithium battery curtain motor (WSCMI-DC-2.0)

Features
RATED TORQUE (Nm) 2
MAXIMUM PULLING WEIGHT (kg) 50
RUNNING SPEED (cm per second) 9/12/14
NOMINAL VOLTAGE (V) 12
NOMINAL CURRENT (A) 4
RUNNING TIME INFINITY
PROTECTION INDEX (IP) 20
TOTAL LENGTH (mm) 250
MAXIMUM TURNS INFINITY
NET WEIGHT (kg) 0.66
RELAY OR SWITCH CONTROL YES
IDLE ENDS REQUIRED CMA2J


DESCRIPTION

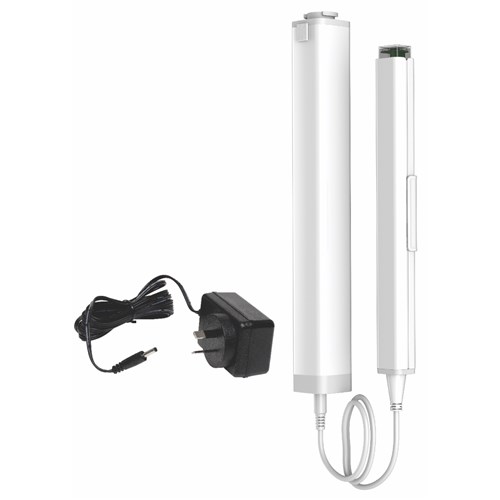

Comes with wall mount battery pack. ALDC charger required.

This new curtain motor replaces the previous WSCME version which is no longer available. Like its predecessor, it's available in both AC (WSCMJ) and DC (WSCMI) versions. Although very similar, there are a few main differences between the AC and DC variants. Both are remote control motors that are compatible with all Alpha controllers and our Neo App. Dry contact control is also available on both for use with switches or relays. Both also can be started by hand, have auto limits setting, and have the same pulling capacity of 50kg. Both also allow the curtain to be drawn by hand if power is disconnected.

The primary differences are as follows:
·      Slightly slower run speed for the DC motor 15cm second vs 18cm second
·      AC version comes with normal tail and molex connector
·      DC version comes with a wall mount cradle for the battery pack and a removable battery for easier charging

SAFETY GUIDELINES FOR ALPHA TUBULAR MOTORS

At Alpha Tubular Motors, your safety and the effective operation of our tubular motors with lithium-ion batteries are our top priorities. We kindly ask you to follow these important safety guidelines:

Avoid Overcharging

Please disconnect the motor from the charger as soon as the green light indicates a full charge. Overcharging can lead to overheating and may pose a fire risk.

Prevent Overheating

To help prevent overheating, ensure the motor is not exposed to high temperatures or direct sunlight for extended periods.

Immediate Action

If you notice any unusual warmth, discolouration, or odours coming from the motor, please disconnect it from the power source and stop using it right away.

Proper Storage

Store the motor in a cool, dry place, away from flammable materials. For best results, keep it within a temperature range of -20°C to 65°C.

Use Approved Chargers

Always use the charger that comes with the motor or an approved replacement. Using incompatible chargers can create safety hazards.

Disposal

Please dispose of lithium-ion batteries according to local regulations. Avoid incinerating or submerging them in water, as this can lead to dangerous reactions.

Additional Notes

To keep your motor in top shape, charge it every six months.

For safety, please ensure that children do not play with the remote or motor.

Liability Disclaimer

While we at Alpha Tubular Motors strive to provide safe and reliable products, we cannot accept liability for any damage or personal injury resulting from improper use, charging, storage, or handling of our motors or their lithium-ion batteries. By using our products, you acknowledge that you have read, understood, and agree to follow these safety guidelines.

SPECIAL CARE
Please see above.
WARRANTY
N/A
