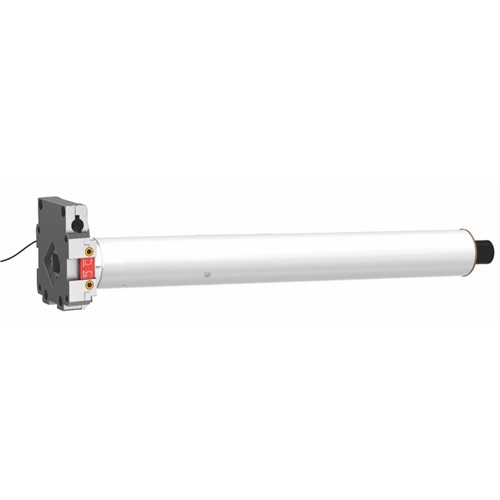

M60-80/12 Mech Limits

Product Code: WSME60-80/12

Features
Standard type manual override motor
Mechanical switch
Built in receiver

RATED TORQUE (Nm) 80
OUTPUT SPEED (rpm) 12
NOMINAL CONSUMPTION (W) 370
NOMINAL VOLTAGE (V) 240
NOMINAL CURRENT (A) 1.6
RUNNING TIME (Min) 4
PROTECTION INDEX (IP) 44
TOTAL LENGTH (mm) 830
MAXIMUM TURNS 27
NET WEIGHT (kg) 6.15

7 years
DESCRIPTION
This motor is a remote control version of a mechanical limits motor, with the addition of manual override. This feature allows a roller shutter or awning to be operated by a crank handle in the event of a power failure. This feature is to allow for emergency operation only and is not suitable for general usage.
KEY FEATURES
Awning
Roller door
Remote control
SPECIAL CARE
N/A
WARRANTY
7 years
