WSERD50-B 20/12 OD Version

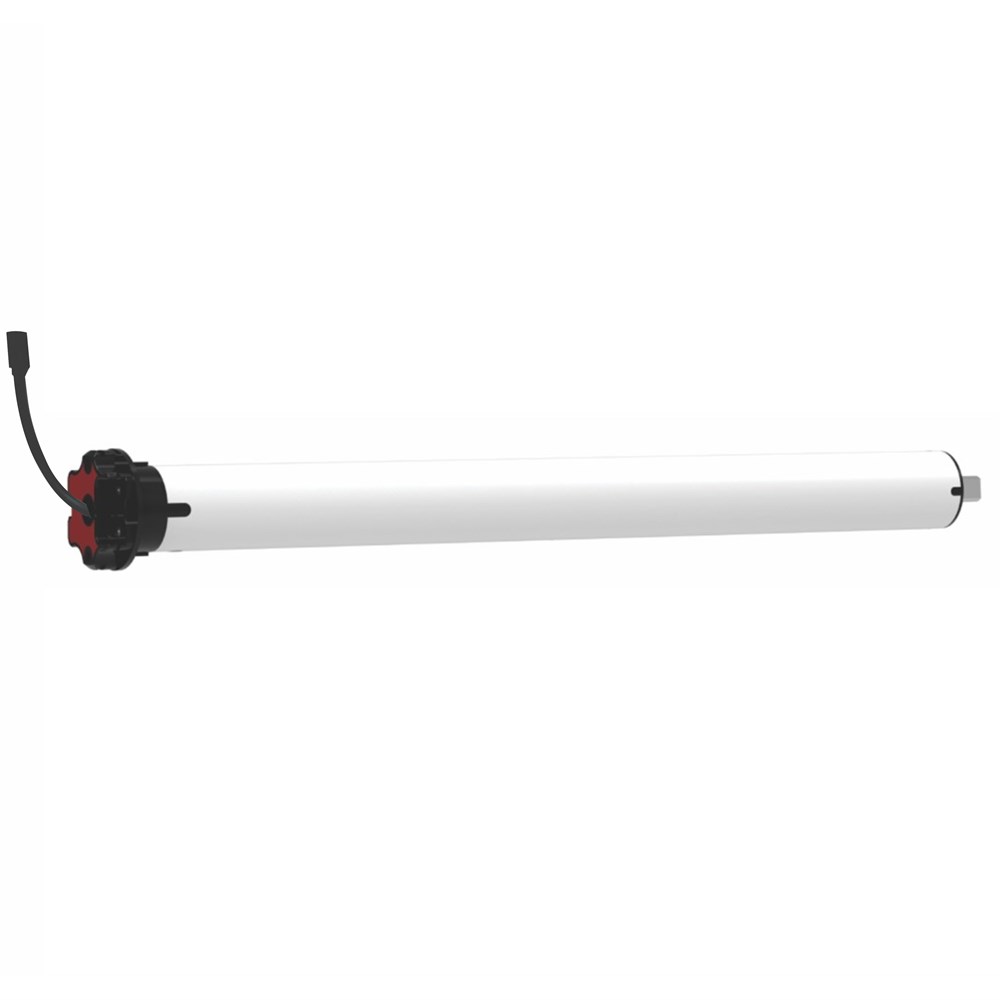

Battery operated OD motor (WSERD50-B 20/12 OD)

Features
  • Ultra quiet motor
  • No electrician needed
  • 3 adjustable speeds
  • OD function can be switched off if not required when setting up side channels.

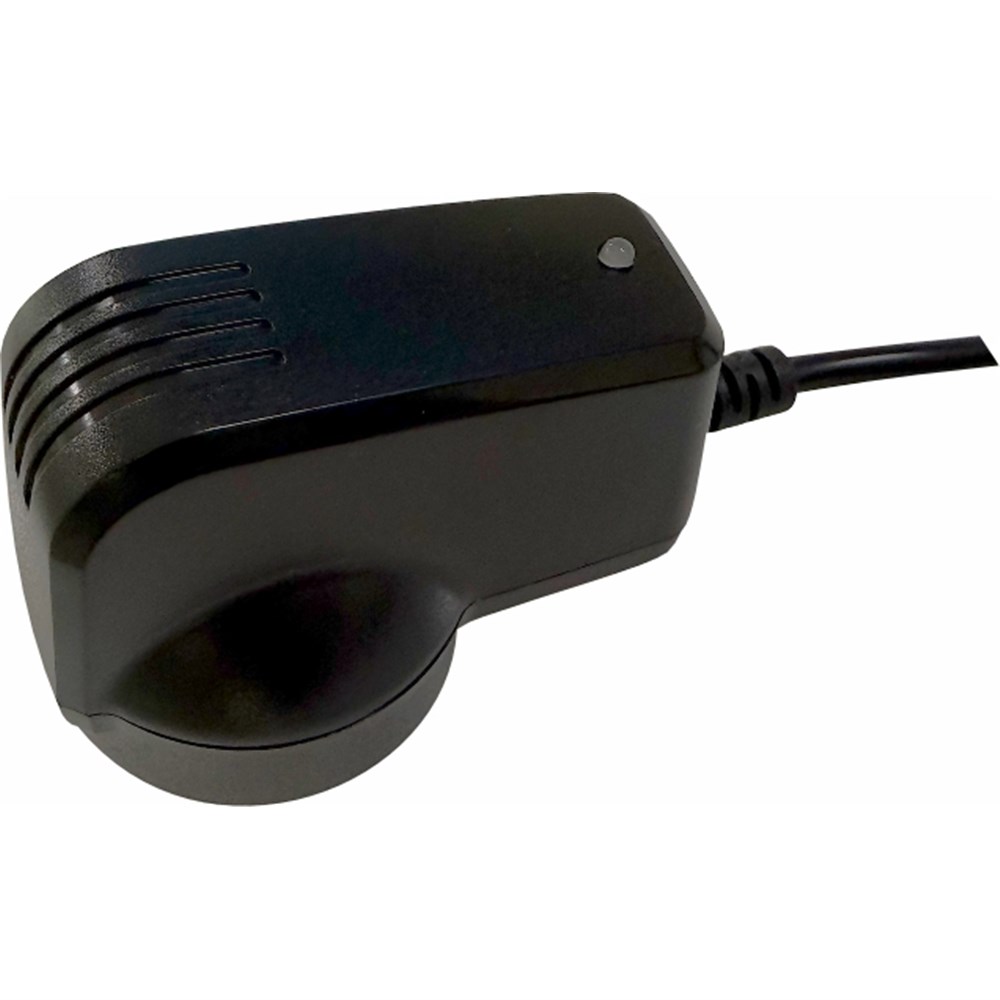

  • 5V USB-C charger required (ALDC 5V 2amp LED)

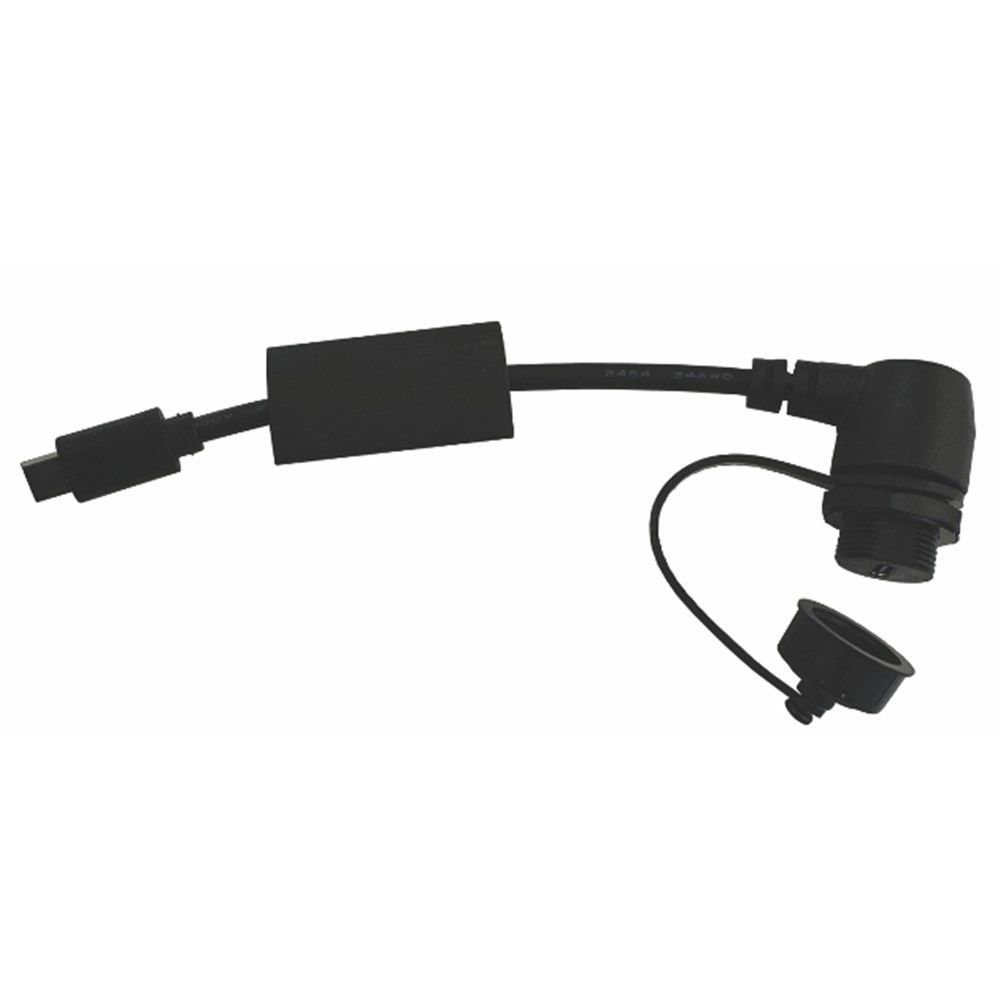

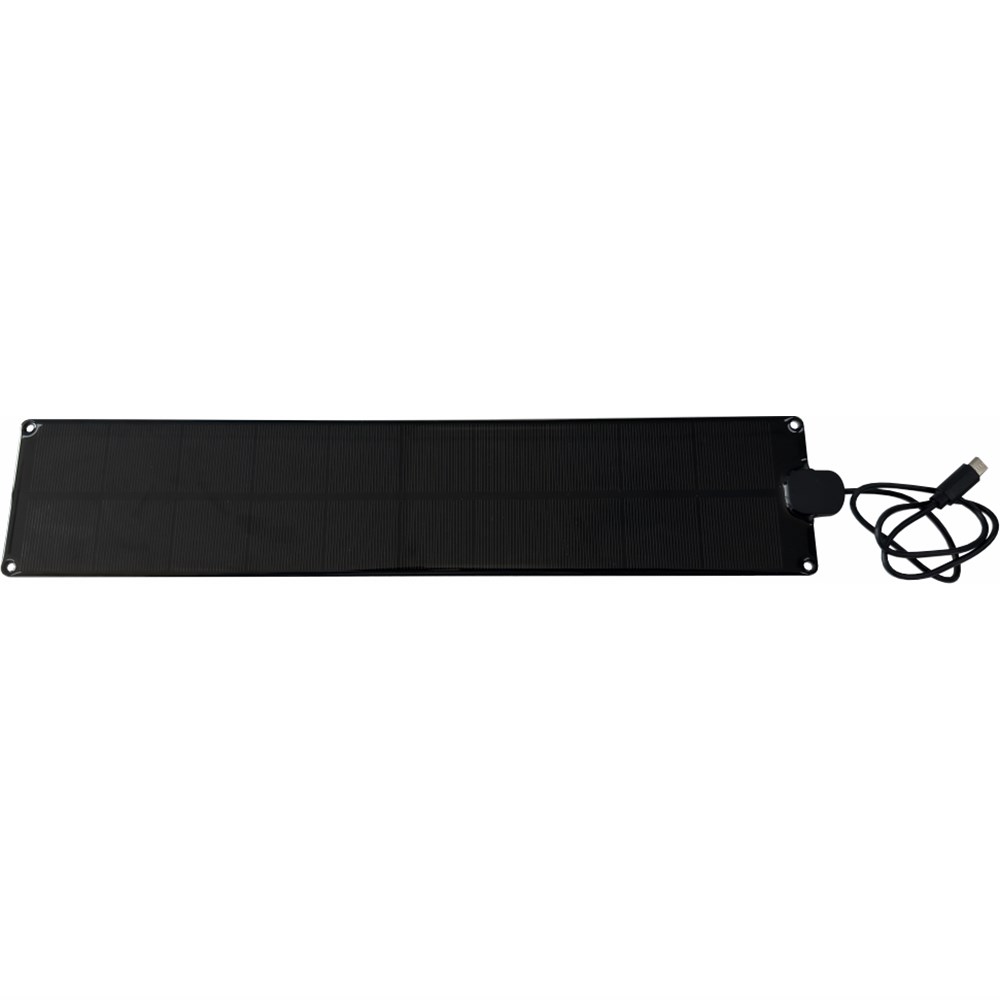

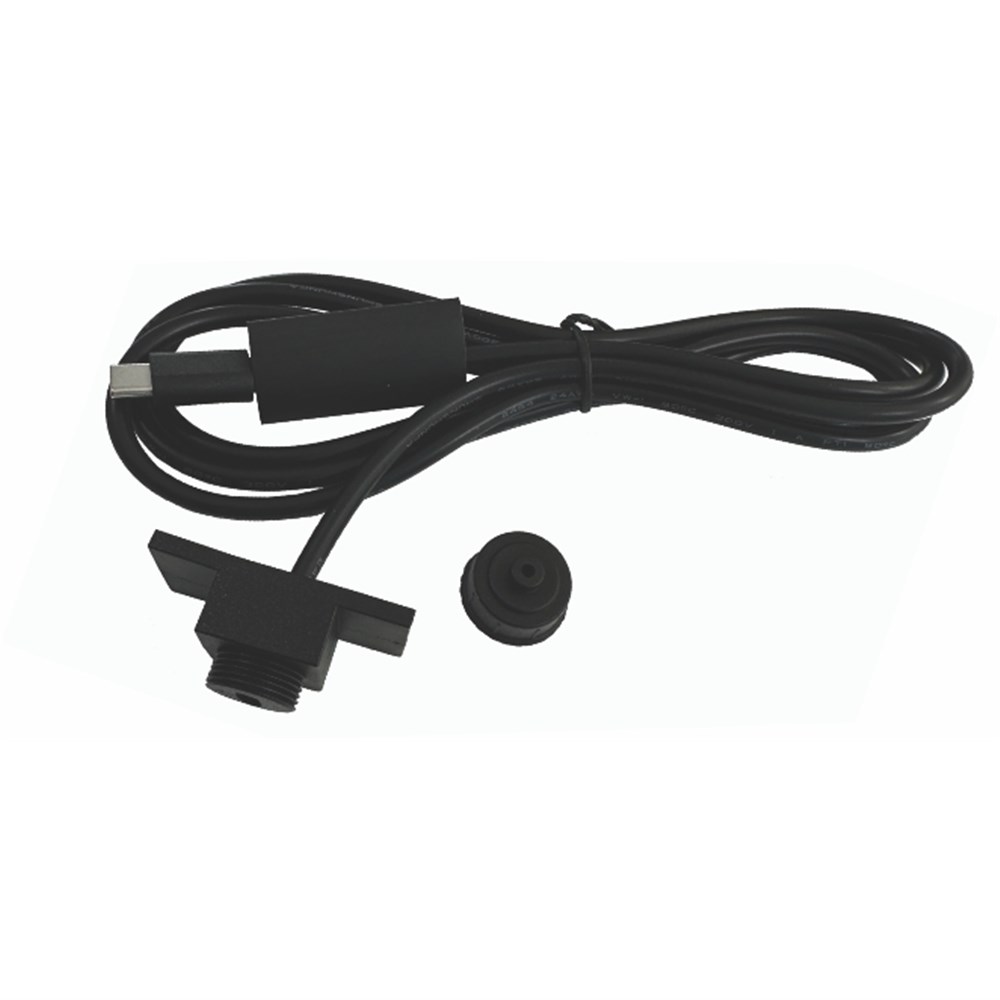

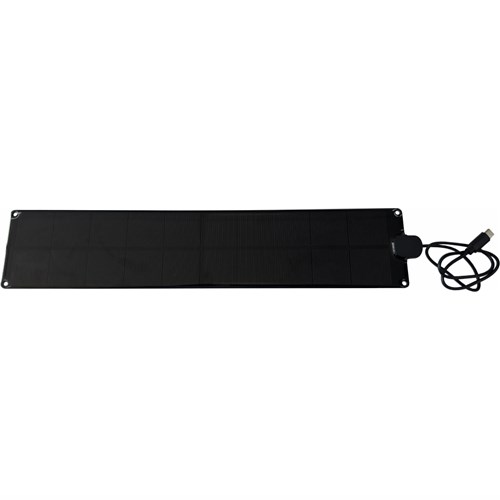

  • Charging options: 1.5m side channel charging port, 150mm head box charging port, 5V solar panel (TYB004-U)
TYPE 20/12
Obstacle Detection YES
Rated Torque (Nm) 20
Output Speed (rpm) 8/10/12
Nominal Consumption (W) 96
Nominal Voltage (V) 12
Nominal Current (A) 8
Running Time (mins) 12
Protection Index (IP) 44
Total Length (mm) 800
Maximum Turns (turn) infinity
Net Weight (Kg) 2.6
Included C&D A2409
Included Bracket A3438
DESCRIPTION
The NEW WSERD50-B 20/12 OD 20Nm version features an obstacle detection (OD) function and has a starhead with an A3438 bracket included. This new motor offering from Alpha features a built-in rechargeable lithium-ion battery, designed for external applications like zip systems and straight drops awnings. A range of charging options, including headbox-mounted charging sockets, side channel charging sockets, or TYB004-U solar panel options are available.
SPECIAL CARE
N/A
WARRANTY
N/A
