Products

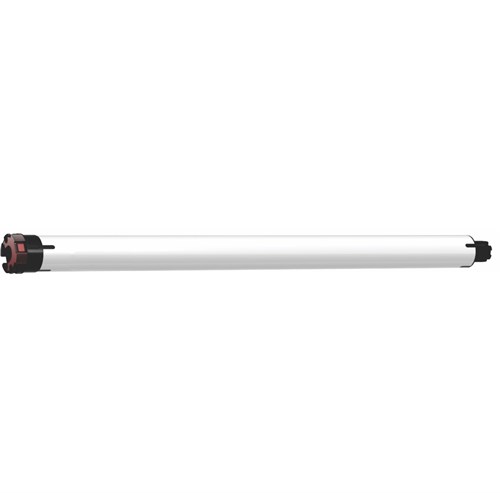

WSEC40 5/28 Universal

Product Code: WSEC40528

Features
Electronic Limit Switch
Parallel connector motor 35mm diametre
For use with building management systems
Parallel wiring compatible

RATED TORQUE (Nm) 5
OUTPUT SPEED (rpm) 28
NOMINAL CONSUMPTION (W) 116
NOMINAL VOLTAGE (V) 240
NOMINAL CURRENT (A) 0.49
RUNNING TIME (Min) 4
PROTECTION INDEX (IP) 44
TOTAL LENGTH (mm) 560
MAXIMUM TURNS INFINITY
NET WEIGHT (kg) 1.35
INCLUDED C&D A2310
INCLUDED MOTOR BRACKET A3304




7 years
DESCRIPTION
Push button type
Electronic limit switch parallel connector 35mm diameter motor.
BEST CHOICE FOR AUTOMATION SYSTEM where electrically controlled 4 core motors are required. Limits may be set by using either the WSB01 limit setting tool or by using the button on the motor head.
KEY FEATURES
Roller blind
Projection screen
SPECIAL CARE
N/A
WARRANTY
7 years
