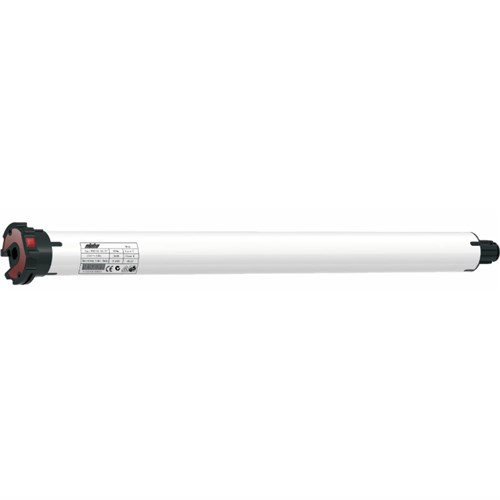

WSEC50 30/17 Universal

Product Code: WSEC503017

Features
Electronic Limit Switch parallel connector motor with 45mm diameter
For use with building management systems
Parallel wiring compatible

RATED TORQUE (Nm) 30
OUTPUT SPEED (rpm) 17
NOMINAL CONSUMPTION (W) 226
NOMINAL VOLTAGE (V) 240
NOMINAL CURRENT (A) 0.95
RUNNING TIME (Min) 4
PROTECTION INDEX (IP) 44
TOTAL LENGTH (mm) 570
MAXIMUM TURNS INFINITY
NET WEIGHT (kg) 2.20
INCLUDED C&D A2404
INCLUDED MOTOR BRACKET A3415





DESCRIPTION
BEST CHOICE FOR AUTOMATION SYSTEM where electrically controlled 4 core motors are required.

This motor is recommended for all external straight drop awning products.

Limits may be set by using either the WSB01 limit setting tool or by using the button on the motor head.

These motors cannot be protected or controlled by Sun/Wind or Motion sensors. Any protective features must be provided by the control system operating the motors.

KEY FEATURES
Awning
Roller blind
Roller shutter
SPECIAL CARE
N/A
WARRANTY
N/A
