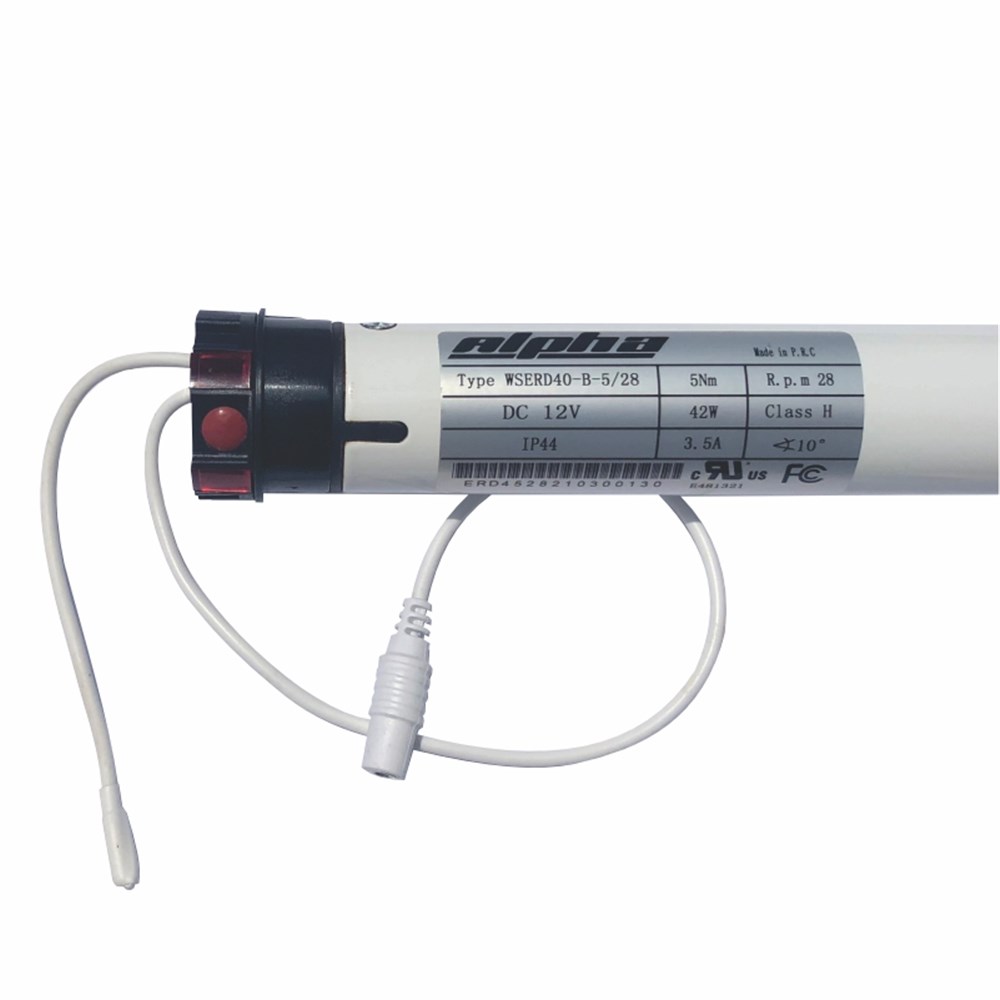

WSERD40-B 5/28

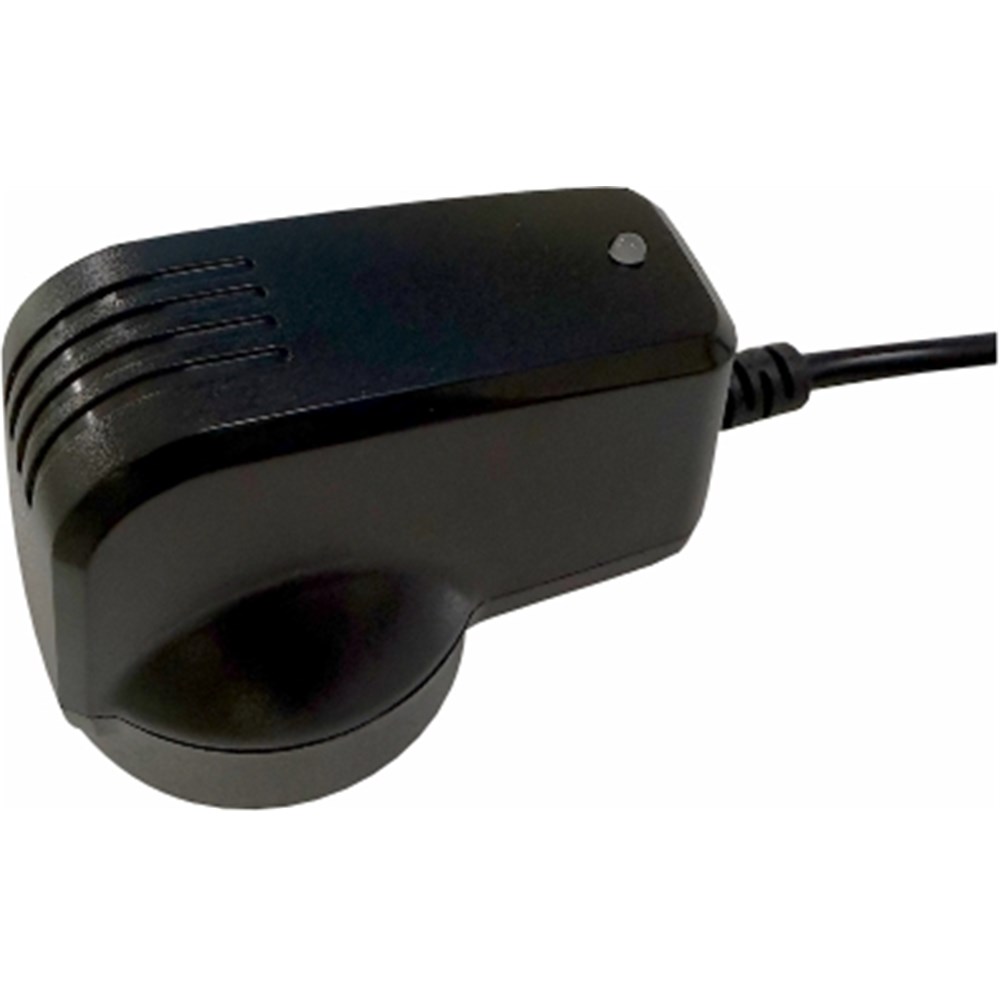

Alpha's WSERD40-B 5/28 indoor-rated 5Nm rechargeable lithium-ion motor, with a sleek mounting head suited to refined interior applications. It can lift 3 linked internal roller blinds up to 5m wide and 2.5m high. It's the ideal solution for wide-spanning shading systems that demand power and speed without the need for an electrician. Like all other Alpha radio products, it's compatible with all Alpha controls and integration devices. Use ALDC 12.6V 1 Amp Charger to charge this motor.

TYPE	5/28
Rated Torque (Nm)	5
Output Speed (rpm)	28
Nominal Consumption (W)	42
Input Voltage (V)	100-240
Nominal Current (A)	3.5
Running Time (mins)	12
Protection Index (IP)	44

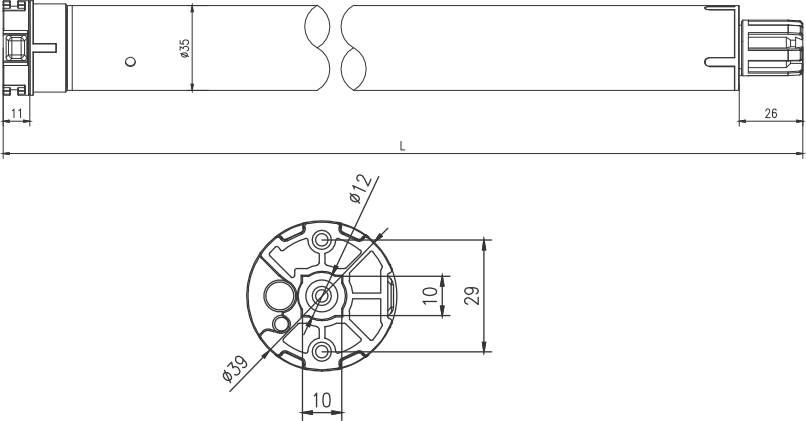

Total Length (mm)	610
Maximum Turns	infinity
Net Weight (kg)	1.4
Sound Intensity (dB)	30
