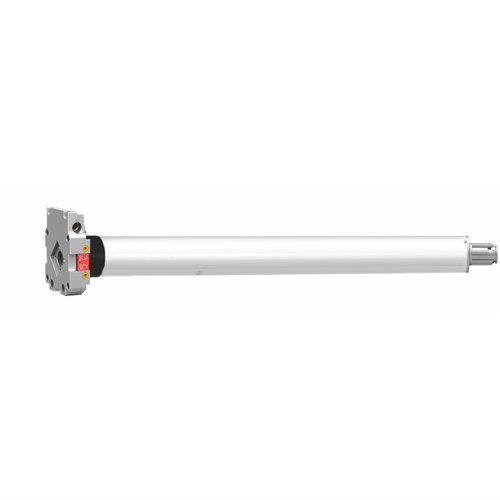

WSM50-50/13 Manual Override with Mechanical Limits

Product Code: WSM50-50/13

Features
Standard type motor
Mechanical switch

RATED TORQUE (Nm) 50
OUTPUT SPEED (rpm) 13
NOMINAL CONSUMPTION (W) 244
NOMINAL VOLTAGE (V) 240
NOMINAL CURRENT (A) 1.06
RUNNING TIME (Min) 4
PROTECTION INDEX (IP) 44
TOTAL LENGTH (mm) 625
MAXIMUM TURNS 27
OVERRIDE TURN RATIO 45:1
NET WEIGHT (kg) 3.3
INCLUDED C&D A2404


DESCRIPTION
This is a mechanical limits motor, with the addition of manual override. This feature allows a roller shutter or awning to be operated by a crank handle in the event of a power failure. This feature is to allow for emergency operation only and is not suitable for general usage.
KEY FEATURES
Awning
Roller shutter
SPECIAL CARE
N/A
WARRANTY
N/A
