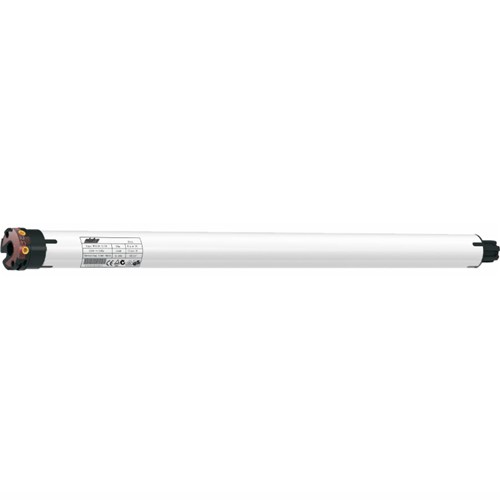

WSS40 5/28 - Universal

Product Code: WSS40528

Features
Standard type motor 35mm diameter
Mechanical limit switch

RATED TORQUE (Nm) 5
OUTPUT SPEED (rpm) 28
NOMINAL CONSUMPTION (W) 116
NOMINAL VOLTAGE (V) 240
NOMINAL CURRENT (A) 0.49
RUNNING TIME (Min) 4
PROTECTION INDEX (IP) 44
TOTAL LENGTH (mm) 480
MAXIMUM TURNS 40
NET WEIGHT (kg) 1.34
INCLUDED C&D A2310
INCLUDED MOTOR BRACKET A3304





7 years
DESCRIPTION

A basic featureless 4 core motor for when you want a reliable workhorse without any bells and whistles.

Unlike the WSEC Series motors, these motors cannot be parallel wired.

KEY FEATURES
Roller blind
Projection screen
SPECIAL CARE
N/A
WARRANTY
7 years
