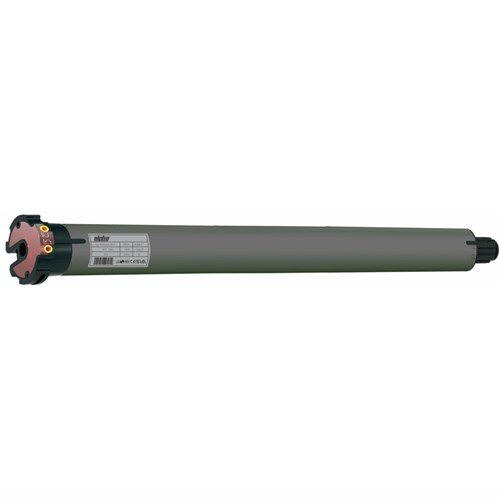

WSS50 20/17 Grey Motor (no Molex)

Product Code: WSSNM50 20/17

Features
Standard type motor
Mechanical switch

RATED TORQUE (Nm) 20
OUTPUT SPEED (rpm) 17
NOMINAL CONSUMPTION (W) 155
NOMINAL VOLTAGE (V) 240
NOMINAL CURRENT (A) 0.68
RUNNING TIME (Min) 4
PROTECTION INDEX (IP) 44
TOTAL LENGTH (mm) 445
MAXIMUM TURNS 27
NET WEIGHT (kg) 2.40


5 years
DESCRIPTION

Alpha Grey is our new economy product aimed specifically at the roller shutter market, and designed to compete at a price point that the normal premium Alpha product can't reach. This is a standard mechanical limits motor, available either with or without a molex connector. Although the normal Alpha motors punch well above their weight in terms of performance, the Alpha Grey motors are not as over-engineered as the premium product but absolutely meet their specifications and are a great reliable motor. The warranty has been reduced to the normal industry standard of 5 years and in the cheaper version of the 2 Alpha Grey motors, the Molex connector has also been removed. This motor simply has a 3m tail without a connector.

If you need a competitive edge on price but are tired of buying inferior motors through shutter suppliers that are often not even compliant to Australian standards, why not give Alpha Grey a try.

KEY FEATURES
Awning
Roller Blind
Roller Shutter
Remote control
SPECIAL CARE
N/A
WARRANTY
5 years
